DOOR SKIN PRESS MACHINE

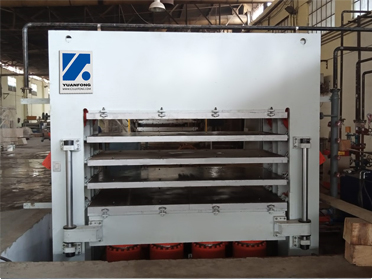

Door Skin Press Machine Overview
The multi-layer molded door press is mainly used for the pressing 3D modeling of the softened MDF or HDF, which can press doors, windows, etc.
Door Skin Press Machine Parameters
| MODEL | TOTAL PRESSURE OF THE WIDTH(KN) | DIAMETER OF PLUNGER CYLINDER(MM) | NUMBER OF PLUNGER CYLINDER(PCS) | WIDTH SIZE | NUMBER OF LAYERS | DISTANCE BETWEEN LAYERS(MM) |
|---|---|---|---|---|---|---|
| YXD-900 | 9000 | Φ250 | 8 | 4*8,3*7 depends on customers | 1-4 | 250 |
| YXD-1200 | 12000 | Φ280 | 8 | 4*8,3*7 depends on customers | 1-4 | 250 |
| YXD-1600 | 16000 | Φ320 | 8 | 4*8,3*7 depends on customers | 1-4 | 250 |
Features of Door Skin Hot Press
1. Frame structure
– The frame is thick and made of high-resistance steel
– The steel plate is a high hardness solid steel
– Configure guide posts to ensure better flatness during pressing.
2. Oil cylinder
– Cylinders are made of special thick steel seamless tubes.
– Welding is done by robotic machines to control all welding parameters.
– CNC machining ensures tight minimum tolerances in operation to extend the life of the cylinder.
– During the pressing process, the pressure speed is adjusted electronically.
4. Pressure control device
– Control the electronics with a microprocessor.
– The pressing parameters are automatically set by the press button.
– Digital instrument for separate electronic control of platen temperature.
– Digital pressure gauge to control the pressure level.
– Two-channel pressure and temperature graph recorder with sensor and probe.
